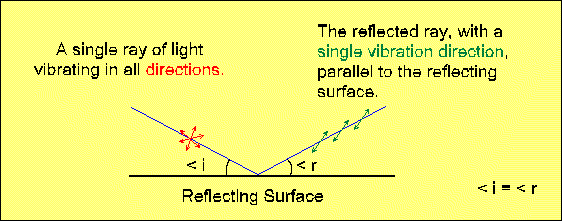

A second
way to polarize light uses the double refraction
that occurs when light passes through an
anisotropic material. Calcite is an anisotropic
mineral which is often used for this purpose.
The critical angle and total
internal reflection
There is a certain angle of
incidence, the angle at which light approaches a
surface, which will cause the refracted ray to lie
along the interface between two materials. The angle
of incidence which gives rise to this situation is
called the critical angle. If the angle of incidence
is greater than the critical angle, no refraction will
occur and all light will be reflected. This is called
total internal reflection.
The
Nicol Prism
A Nicol prism is a device used for
polarization in many older polarizing microscopes. The
prism is made using a clear calcite crystal. The
crystal is cut on the diagonal and is glued back
together using balsam (which has an index of
refraction of 1.537). Because calcite is an
anisotropic mineral, when monochromatic, unpolarized
light enters the crystal, it is split into an
e
and w
ray. The rays have two different velocities, and
therefore have two different indices of refraction.
The index of refraction of the
e
ray is lower than that of balsam, while the index of
refraction for the w
ray is greater than that of balsam. The cut of the
crystal is such that when the
w
ray strikes the interface between the calcite and the
balsam its angle of incidence is greater than the
critical angle, and it is totally internally reflected
and absorbed. The
e ray is allowed to enter the
balsam and is transmitted as plane polarized light.
Courtesy of Greg Finn, Brock University http://www.brocku.ca/earthsciences/people/gfinn/
