Interesting Miscellaneous Information and Diagrams

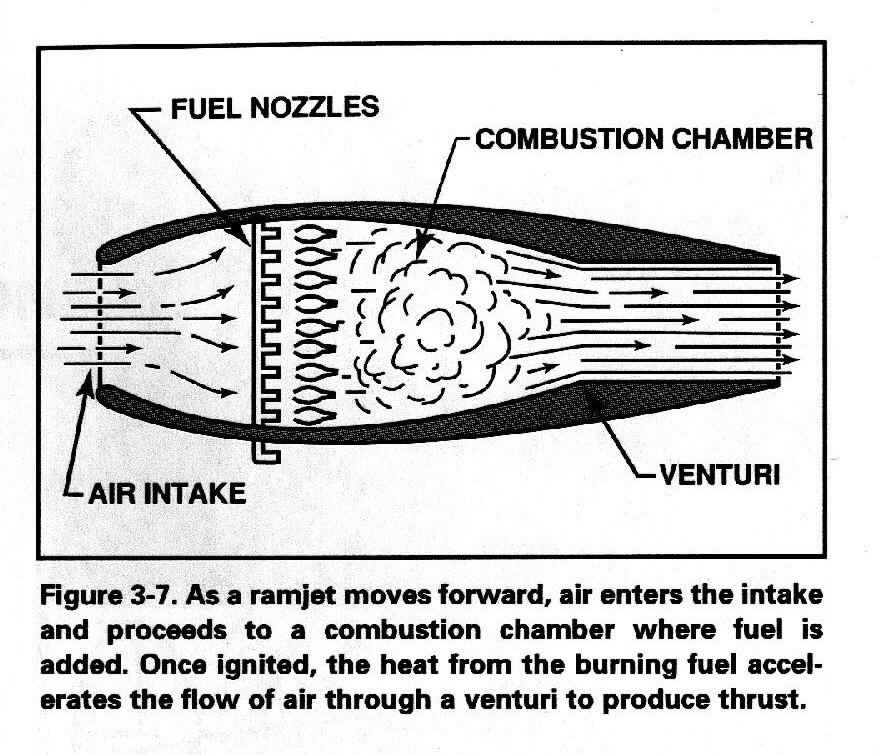

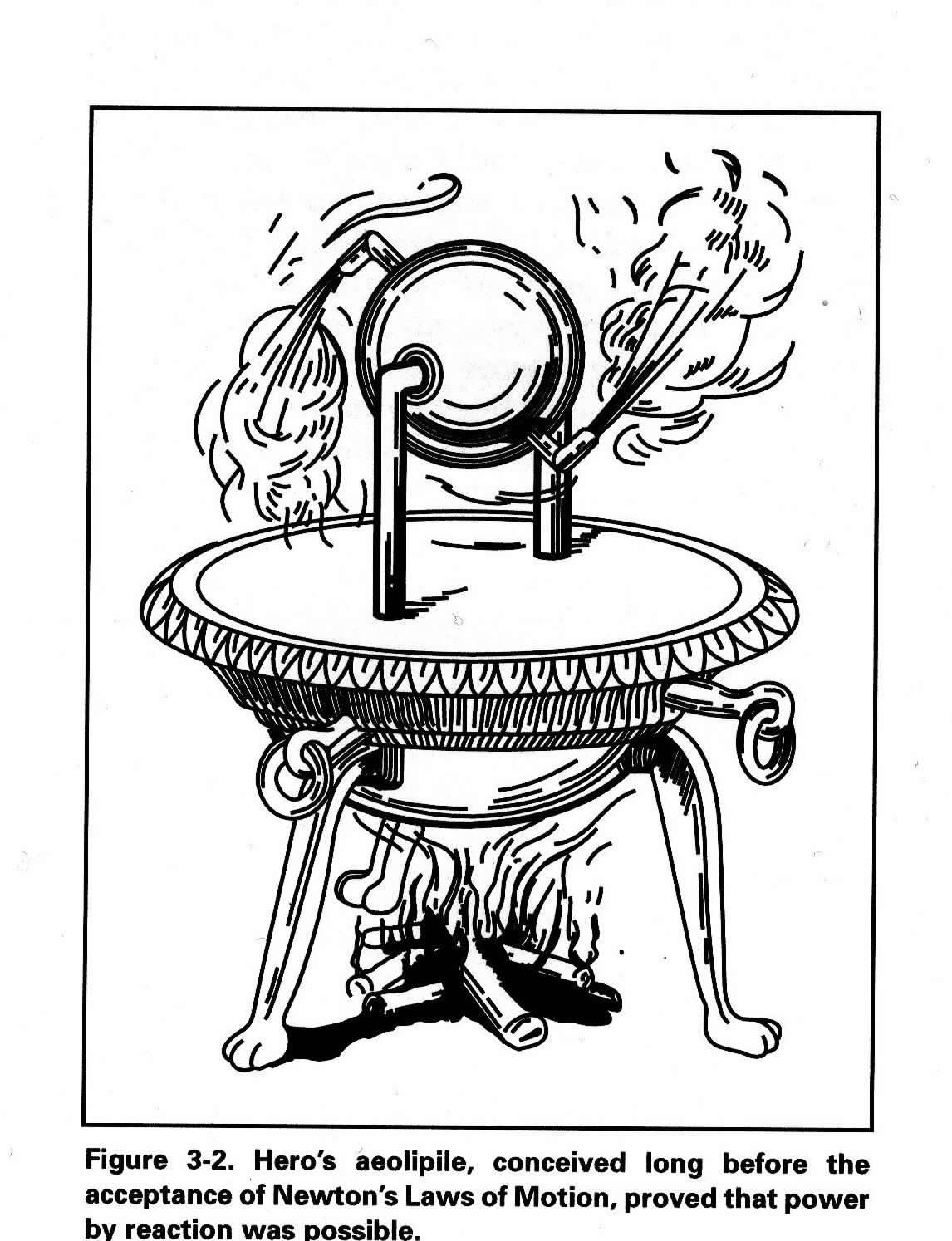

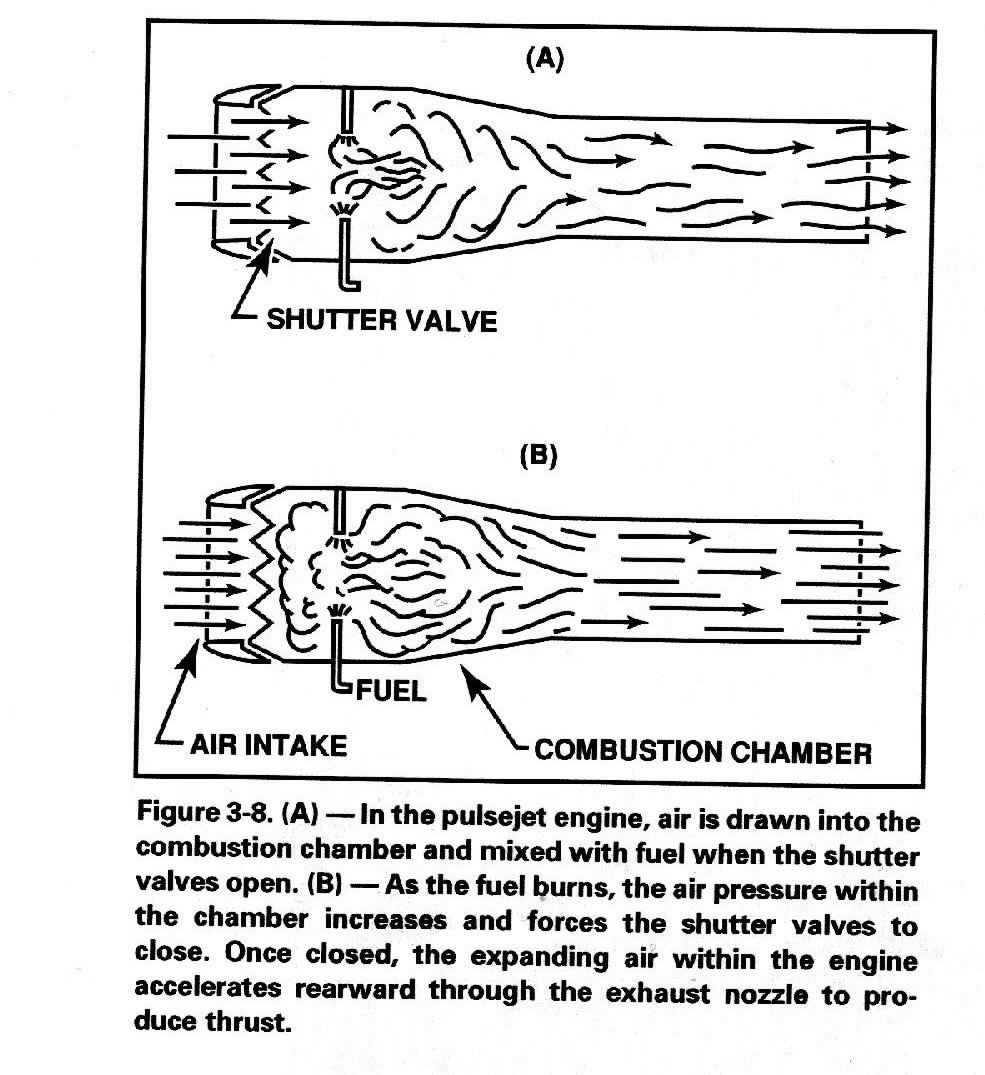

Here are diagrams of 3 types of non turbine jet engines



Page 3-2 *                                                                                                                                         Page 3-4*


Page 3-5 *

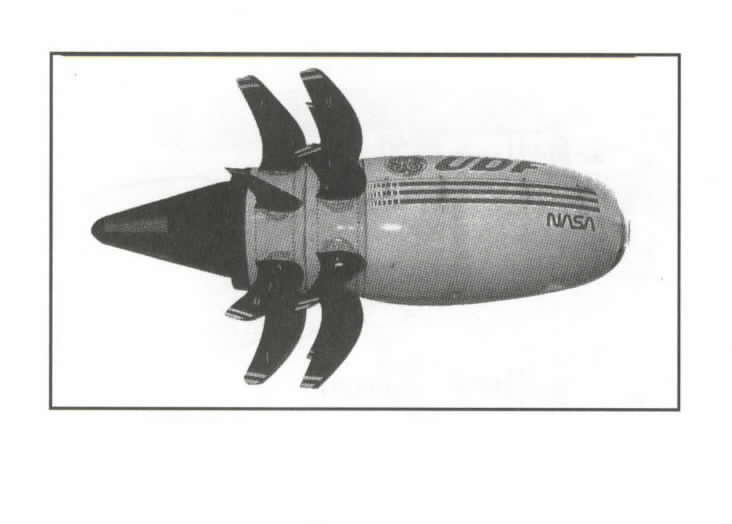

Below is a picture of an external bypass turbofan engine.  Nasa found this design to be more efficient under certain conditions.  It isn't in production since most airline passengers would be scared to fly in an airplane with this type of engine.


Page 3-8

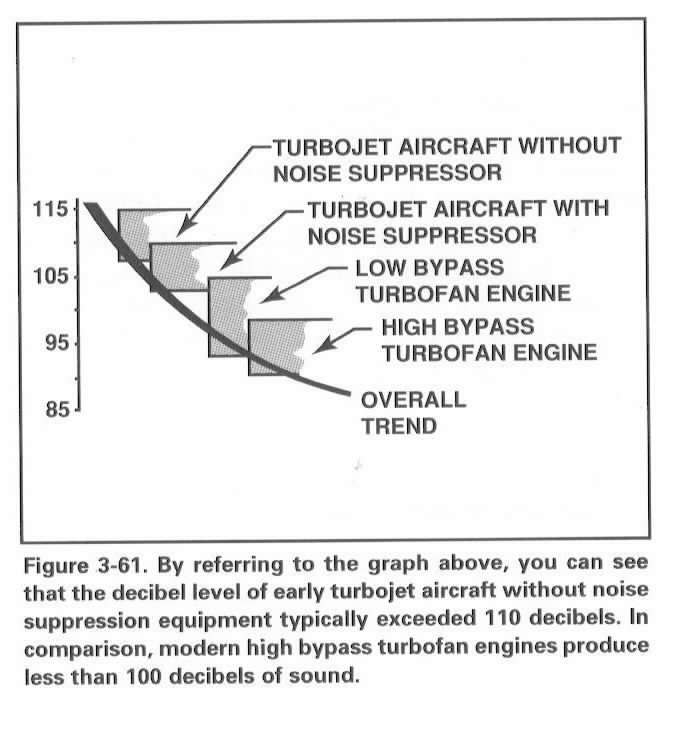

These charts below show the noise level comparison of different types of turbine engines. it turns out that the most efficient are also the quietest.


Page 3-34 *                                                                                                                   Jeppson A&P General textbook  page 2-29*

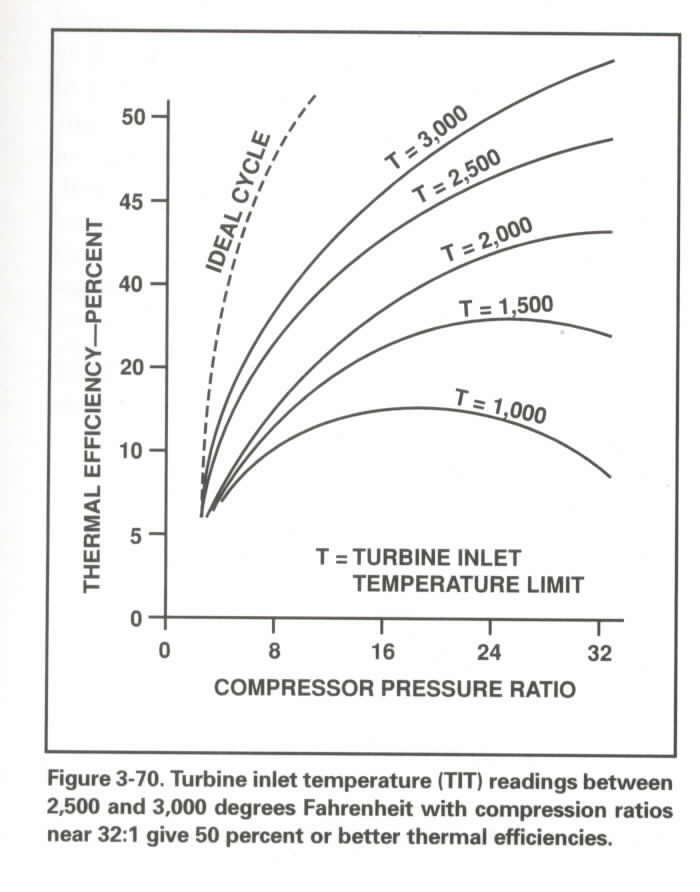

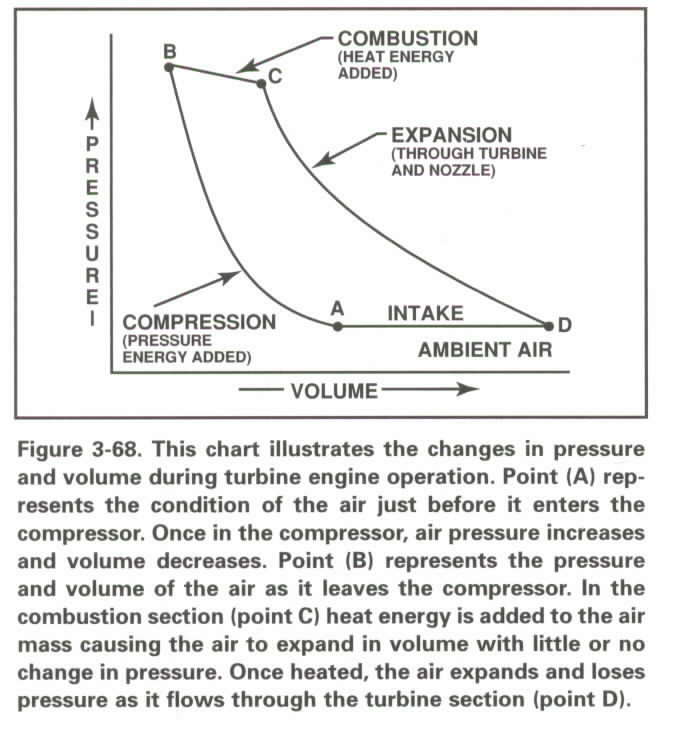

Here are some other charts. Notice the famed thermodynamics P/V chart.

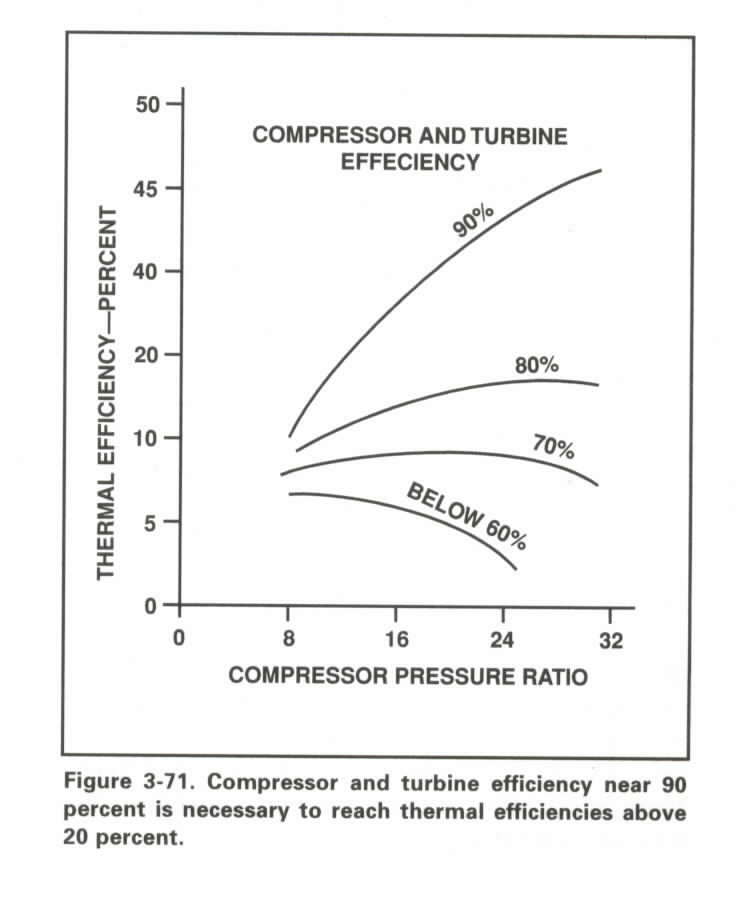

Page 3-39*                                                                Page 3-41*                                                                    Page 3-41*

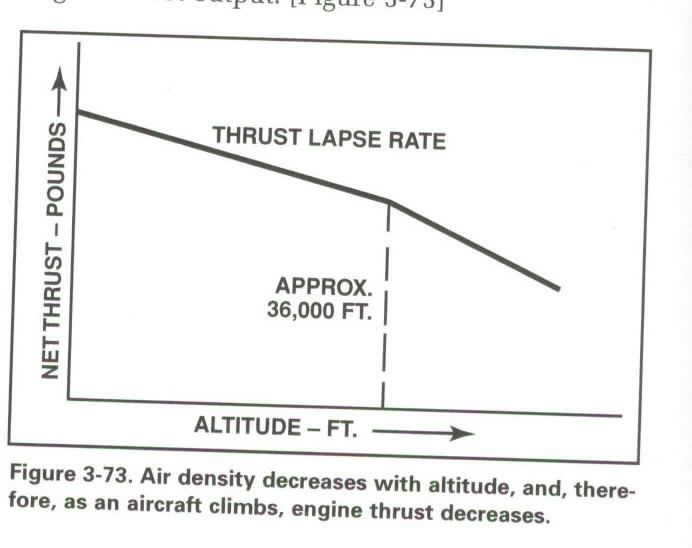

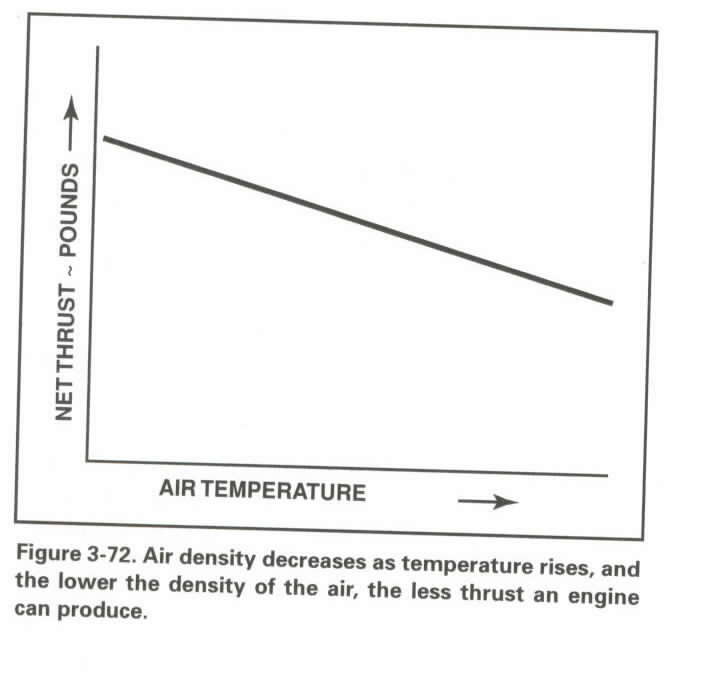

Page 3-42*                                                                     Page 3-42*

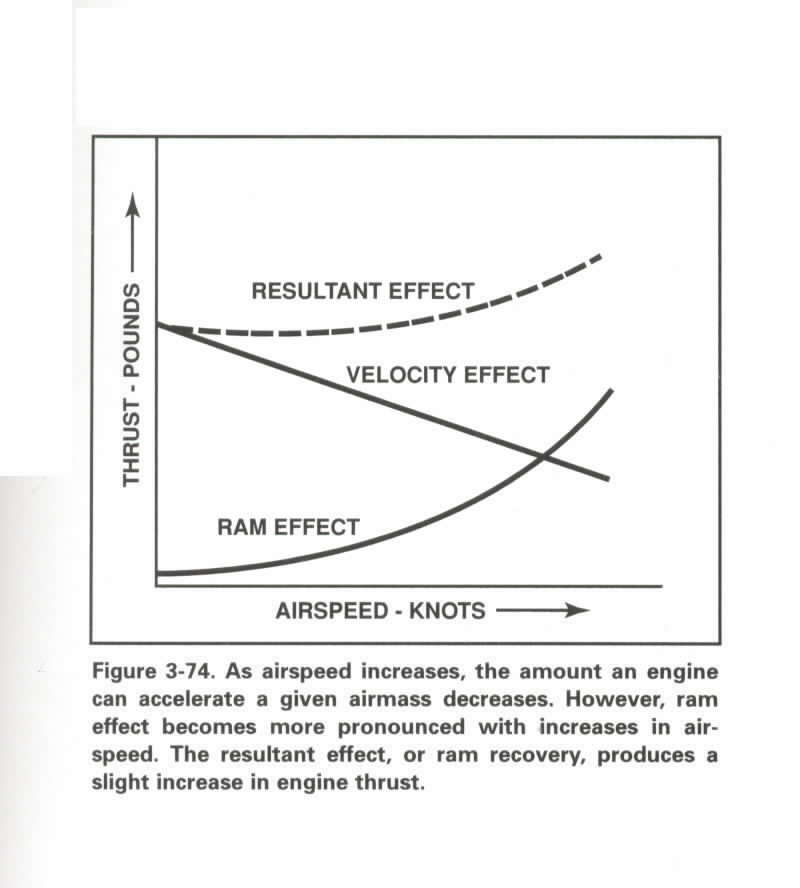

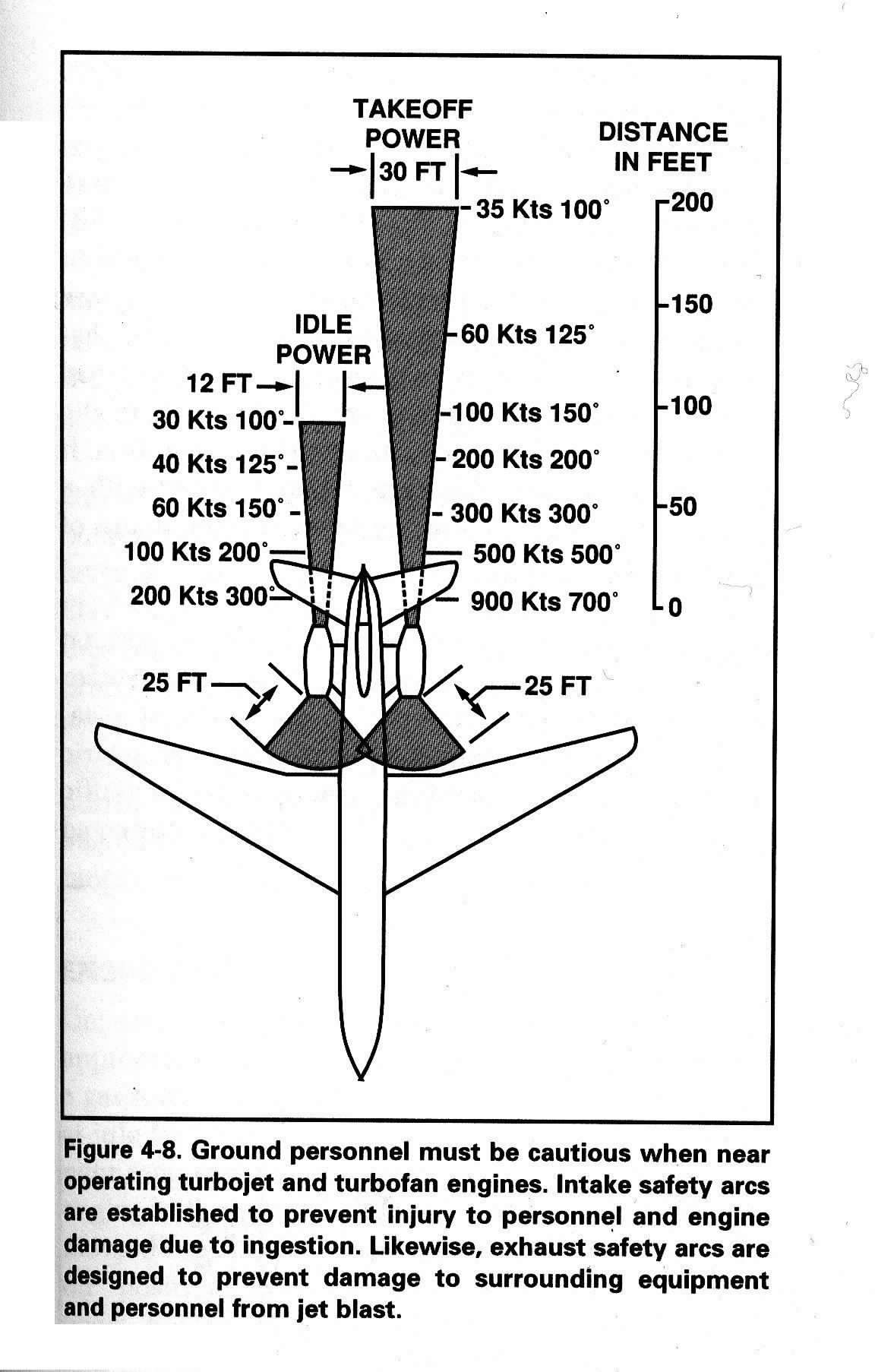

    Page 3-43*                                                                                  Page 4-7 *



click here to go to the
next page

Contents Page

*Whenever there is a page number underneath a diagram the picture is from
A&P Technician Powerplant Textbook published by Jeppesen Sanderson Inc., 1997
