Electric Paintball Markers

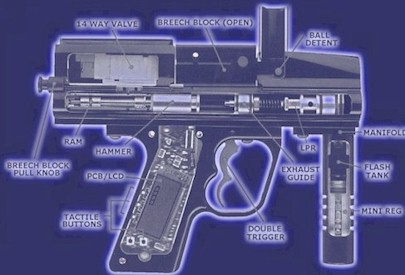

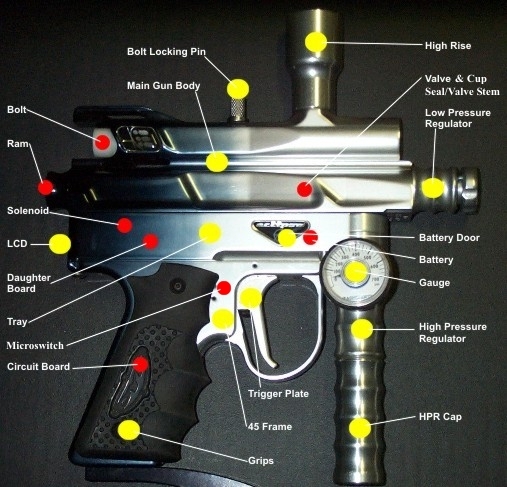

Electric guns use an electronic air valve called a solenoid. The solenoid channels pressurized gas stored within the body of the gun or in a volumizer to the open and close ports on a piston or ram set up. Instead of a hammer under tension from a spring, the exhaust valve is opened by the piston or ram being slammed into the back of the exhaust valve, releasing gas to shoot the paintball. The piston then returns back to the battery or closed position where it is ready to start the whole cycle over again. The electronic circuit board inside of the marker instructs the solenoid to shift air between the open and close ports on the ram after a certain amount of time has gone by. The time between the opening and closing of the ram ports is called a dwell. The time duration is incredibly short between the opening and closing, it is only a few milliseconds, which still just enough time to send gas through the exhaust valve, into the bolt, and down the barrel pushing the paintball down range. Since the time required to shoot a ball down range is only a few milliseconds this allows for the marker to fire 13+ rounds a second down range, this is clearly superior to a mechanical marker which could probably fire around seven balls per second. The speed at which and the pattern in which the ports are open can be set on the circuit board inside of the marker. This allows for single shot, triple shot, six shot or rapid fire modes. Also since the time in which the ports are open is controlled electronically, It also means the you get a much more efficient use of your C02.
